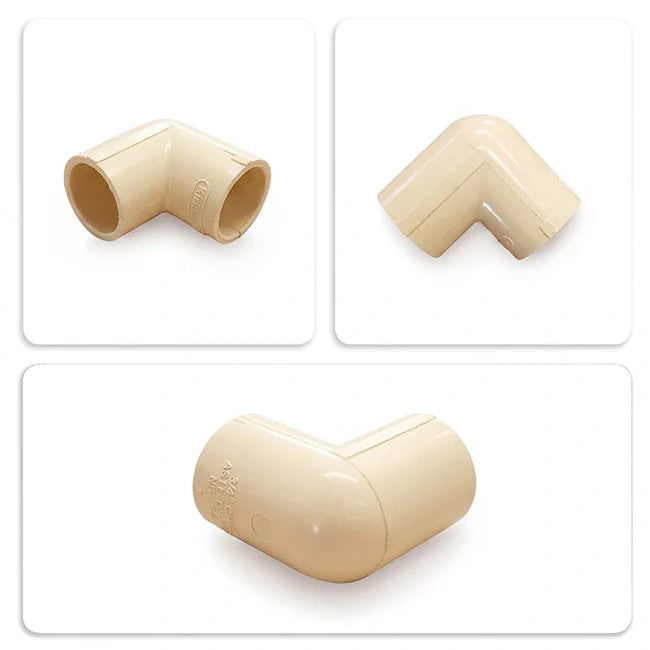

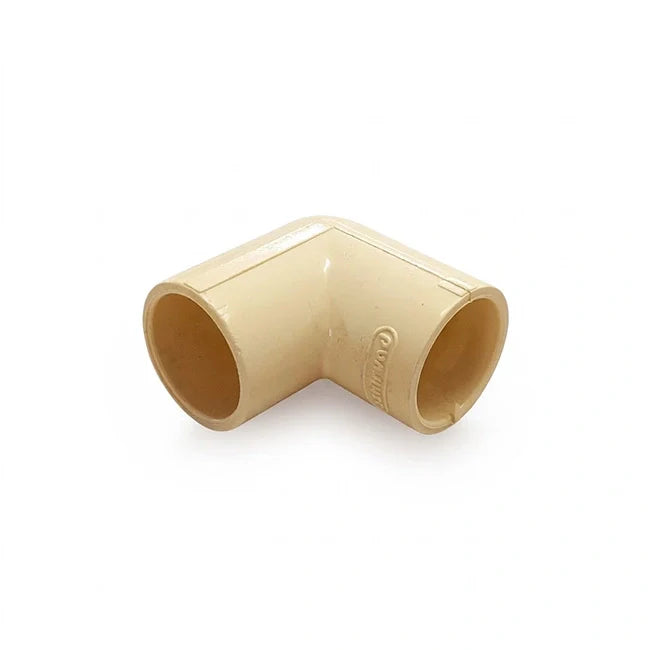

Ashirvad Flowguard Plus CPVC 90° Elbow
Ashirvad Flowguard Plus CPVC 90° Elbow
Couldn't load pickup availability
Ashirvad Flowguard Plus CPVC 90° Elbow is engineered for superior performance in hot and cold water distribution systems. Manufactured from high-grade CPVC compound, this fitting provides exceptional resistance to high temperatures, corrosion, and chemical degradation. The 90-degree elbow allows for precise directional changes in plumbing layouts, making it essential for bathroom, kitchen, and utility room installations.
The Flowguard Plus system features advanced FlowGuard Gold CPVC technology that ensures leak-free joints when installed with compatible solvent cement. The smooth interior surface prevents scale buildup and maintains consistent water flow over decades of service. Backed by Ashirvad's reputation for quality, this elbow fitting meets international standards for potable water applications and is ideal for both new construction and renovation projects.

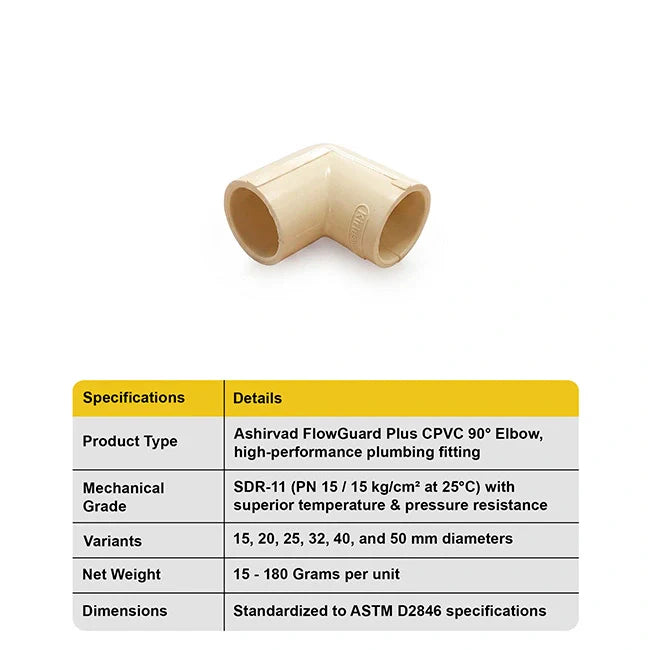

Technical Specifications (Quick Reference)
| Specification | Details |
|---|---|
| Fitting Type | 90° Elbow (Right Angle Bend) |
| Material | CPVC (Chlorinated Polyvinyl Chloride) |
| Maximum Temperature | 93°C (200°F) continuous service |
| Pressure Rating | SDR-11 (PN 15 / 15 kg/cm² at 25°C) |
| Connection Type | Socket (Solvent Weld) |
| Standards | ASTM D2846, NSF certified for potable water |
Recommended Applications
- Hot Water Distribution: Geyser connections, solar water heater systems, and hot water supply lines
- Cold Water Plumbing: Overhead tank connections, bathroom fixtures, and kitchen supply lines
- Bathroom Installations: Shower systems, basin connections, and toilet flush tank supply
- Kitchen Plumbing: Sink connections, RO water purifier lines, and dishwasher hookups
- Commercial Buildings: Hotels, hospitals, apartments, and office complexes requiring reliable hot water systems
- Industrial Applications: Process water lines, chemical-resistant piping, and corrosive fluid handling
Installation Guidelines
- Pipe Preparation: Cut pipe squarely using a pipe cutter or hacksaw; deburr and chamfer the pipe end at 10-15° angle
- Dry Fit Check: Insert pipe into elbow socket to verify proper fit (pipe should insert 2/3 of socket depth without cement)
- Surface Cleaning: Clean both pipe end and socket interior with CPVC cleaner/primer to remove dirt and oils
- Solvent Cement Application: Apply Ashirvad Flowguard Plus CPVC solvent cement evenly to both surfaces; insert pipe with a quarter turn and hold for 30 seconds
- Curing Time: Allow 15 minutes set time before handling; wait 1 hour before pressure testing and 24 hours before full operation
